Drainage Board is a geosynthetic material engineered to provide efficient water drainage, soil stabilization, and structural protection in construction, landscaping, and environmental projects. Made from high-density polyethylene (HDPE) or polypropylene (PP), it features a three-dimensional core structure paired with a geotextile filtration layer, ensuring rapid water removal while preventing soil erosion and hydrostatic pressure buildup.
1. Durable Material Composition

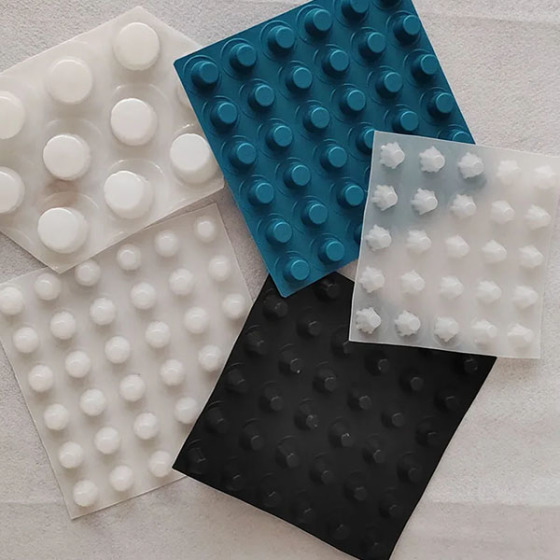

Core Layer: Rigid HDPE/PP matrix with raised studs or dimples (height: 8–50 mm) for high compressive strength (≥300 kPa).

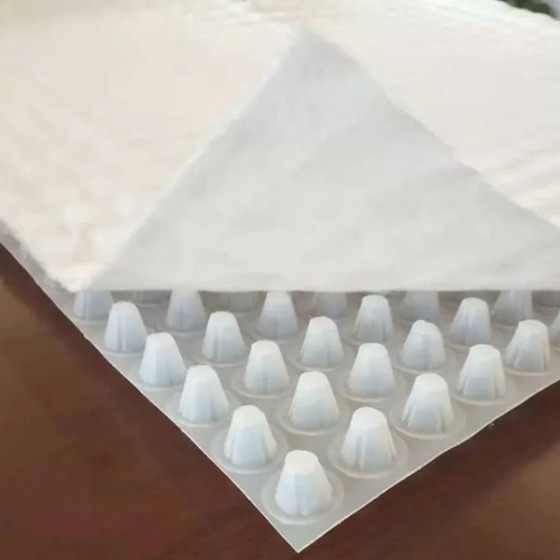

Geotextile Filter: Non-woven polyester or polypropylene fabric (100–500 g/m²) to block soil particles while allowing water flow.
2. Superior Drainage Performance
Rapidly channels water away from structures, achieving a drainage capacity
Reduces hydrostatic pressure on foundations, walls, and retaining structures.
3. Lightweight & Flexible
Easy to cut and install on slopes, curved surfaces, or irregular terrains.
UV-resistant and chemical-proof for long-term outdoor use (lifespan: 10–20 years).
4. Multi-Functional Design
Acts as a protective barrier against root penetration and mechanical damage.
Compatible with vegetation for eco-friendly slope greening.
| Unit Weight (g/㎡） | 700/900/1000/1100/1500/1800/2000/2200/2400 | |

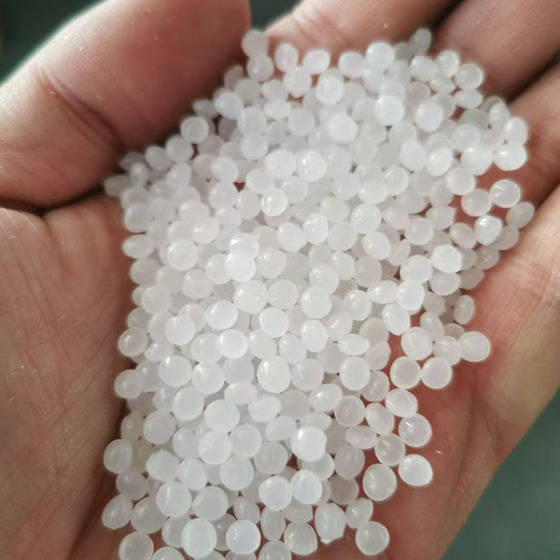

| Materials | HDPE | |
| Width(m) | 3 | |
| Length(m) | 10/15 | |
| Height(mm) | 10/12/14/16/20/30/40/50 | |
| Compressive strength（≥KPa） | 300(700g--1500g) | 350+(1800g--2400g) |
| Tensile Strength(≥N/5cm) | 350 | |
| Elongation(≥0%) | 30 | |
| Longitudinal water flow rate(≥m³/s) | 10 | |
| Puncture Strength(≥N) | 350 | |
| Remark | The special specification or size can be manufactured according to the demands | |
Roof & Green Spaces: Prevents waterlogging in rooftop gardens, planter boxes, and sports fields.
Underground Structures: Protects basements, tunnels, and parking garages from groundwater infiltration.
Transportation Infrastructure: Enhances drainage in highways, railways, and airport runways.
Landfill & Mining: Manages leachate and stabilizes soil in environmental remediation projects.
