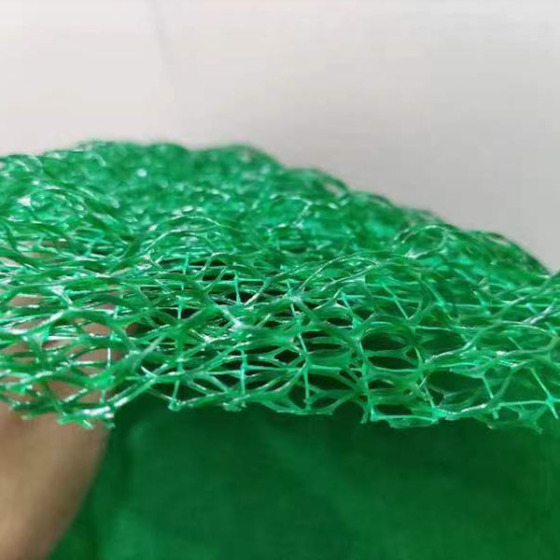

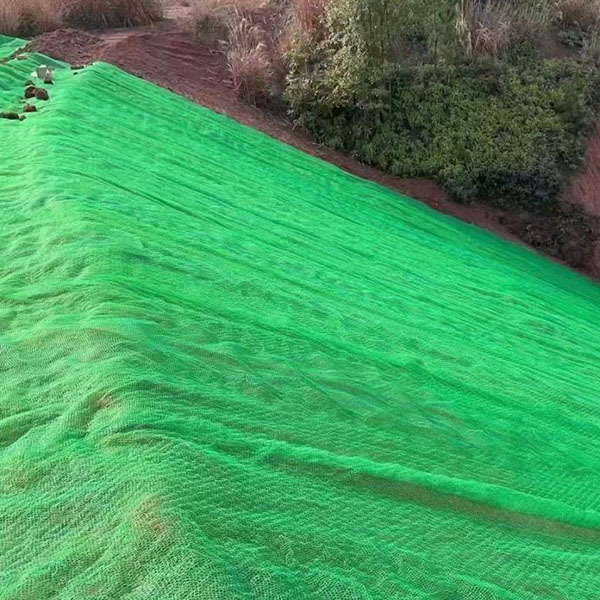

3D Geomat is a kind of new-typed slope protection material with tridimensional structure,which made of high molecular synthetic material.It has mainly been used in highway, railway, riverway, embankment, hillside etc.
The texture is loose and flexible，before the turf is growing up, and fix the seeds.The turf after growth makes the mat, turf and soil surface be firmly combined together, and builds a protection system with its own growth ability on the slope, which can greatly improve the stability and erosion resistance of the slope.
The main function of a 3D mesh is to stabilize the construction slope surface and prevent rainwater erosion when the slope is exposed. It can protect the sprayed plant seeds from being washed away by rainwater, thus ensuring the protection effect of the slope surface.Once the plants recover, the stabilizing effect of the 3D Geomat on the slope will no longer exist, and plants can maintain slope stability with their developed root systems. Meanwhile, with the aging and resolution of the three-dimensional network, it is more conducive to the integration of plants with the slope surface, which can achieve better biological (plant) protection effects.
| Model | EM2 | EM3 | EM4 | EM5 |
| Mass per unit, g/m2 | 220g | 260g | 350g | 430g |
| Tensile strength(MD), KN/M | 0.8 | 1.4 | 2 | 3.2 |
| Thickness(mm) | 10 | 12 | 14 | 16 |
| Layers | EM2 | EM3 | EM4 | EM5 |
| width | 2m | |||
| Length | 30m/50m | |||
| Material | HDPE | |||
| Color | Green/Black/Dark Green | |||
| Demand | Customizable according to needs | |||
